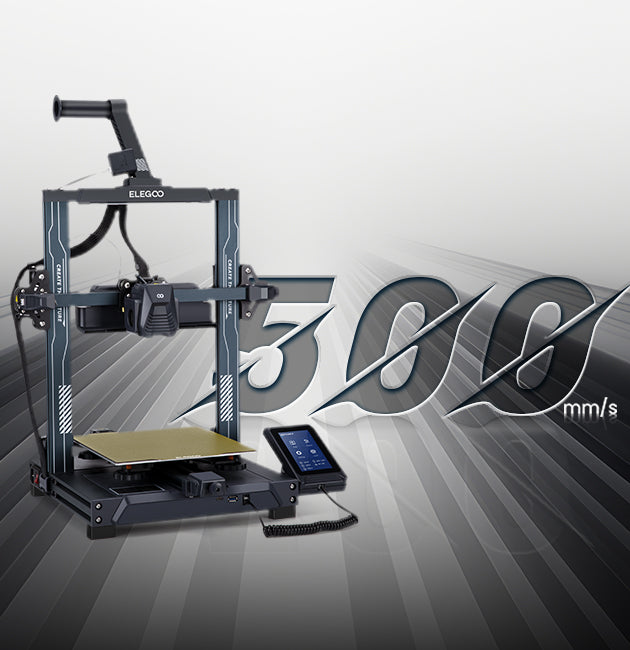

Speed Up Printing with Klipper

The ELEGOO Neptune 4 comes pre-installed with Klipper firmware, with an ARM 64-bit 1.5G main frequency quad-core processor for faster command processing and execution, enabling it to print at an impressive speed of up to 500mm/s for higher efficiency. 8G RAM provides ample storage space for fast printing.

Additionally, the printer supports advanced features such as input shaping, which reduces mechanical vibrations in the printer's motion system and artifacts such as ringing, rippling, ghosting, or echoing on the printed model surface. The pressure advance function adjusts material flow according to printing speed, ensuring consistent pressure in the nozzle and reducing filament ooze or blobbing.

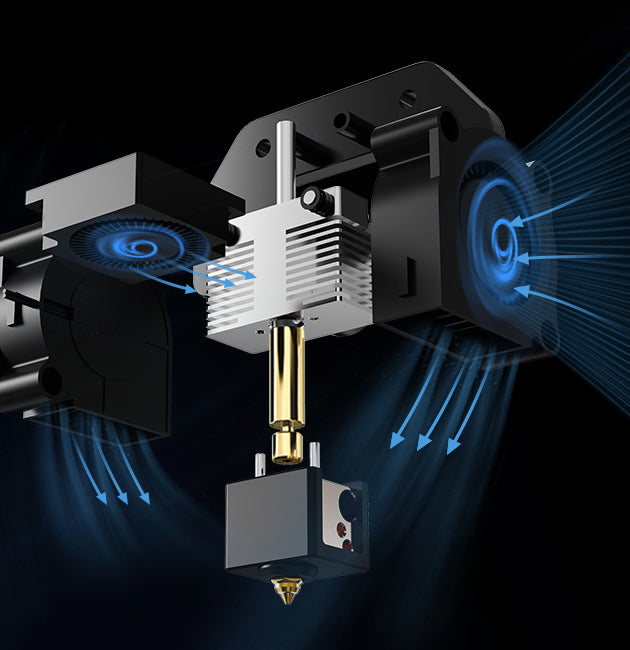

Potent Extrusion & Upgraded Hotend

The dual-gear direct extruder with a 5.2:1 reduction ratio and enhanced gearing force for even filament extrusion and sufficient discharge, weighing only 75% of the weight of the Neptune 3 Pro.

Copper-titanium bi-metal throat pipe with unique air duct design for faster heat dissipation and less nozzle clogging.

The nozzle with an extended hotend can withstand up to 300°C to fully melts the filament, meeting the temperature requirements of high-temp filaments like nylon.

Unparalleled Heat Dissipation Performance

In addition to the two thickened 4015 ball bearing cooling fan on both sides of the print head, there are four 4020 ball bearing auxiliary fans behind the print head, which ensures omnidirectional rapid cooling of the newly printed layers even at a fast printing speed, and the deposited hot filament quickly bond together for better overhang and bridge results.

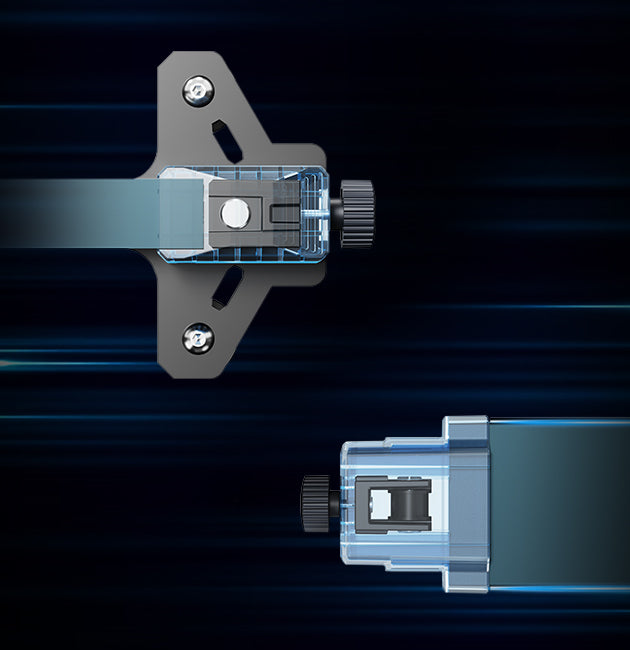

Stable & Quiet Printing

The ELEGOO Neptune 4 3D printer is designed for quiet and precise printing with its silent drivers for all axes, reducing noise to below 50db. Its wear-resistant POM V-guide wheels moves quietly, smoothly, and accurately.

The Z-axis dual lead screw + Z-axis dual motor design provides better synchronization, increasing the accuracy and stability of the print head movement.

Smoother Model Surface

Support advanced functions like input shaping and pressure advance to achieve smooth model surface and consistent extrusion
