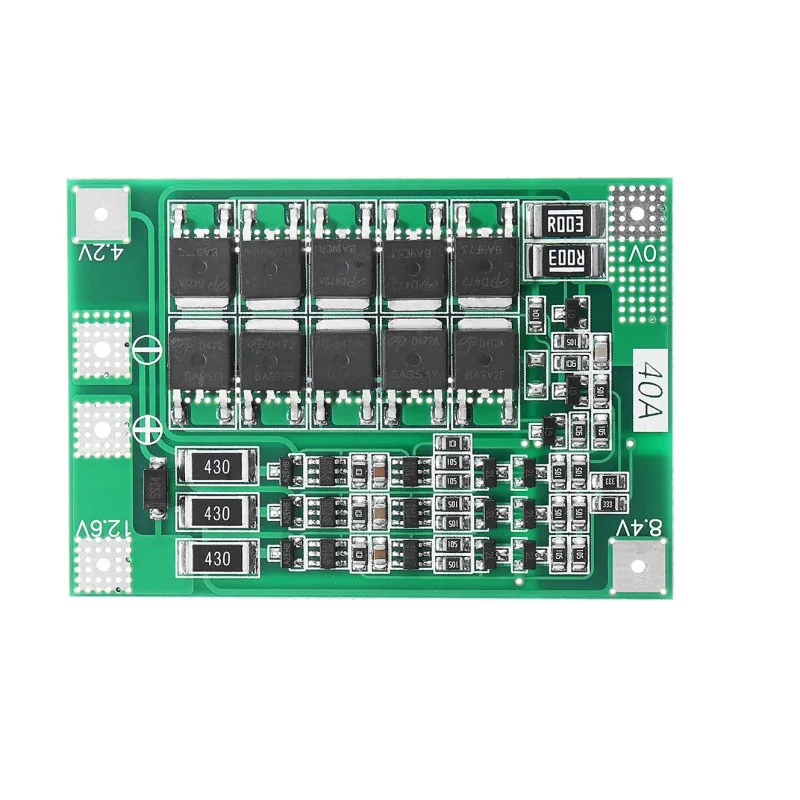

BMS 3S Charger Li-ion Lithium Battery 18650 Protection Board 40A/60A
(edit with the Customer Reassurance module)
: الأرجاع في غضون 7 أيام بشروط أنقر لتفاصيل أكثر
Product Description 60A
Product parameters:
Charging voltage : 12.6V-13V
Maximum working current : 60A ( heat dissipation conditions are very good )
Continuous charging current ( upper limit ) : 20A
Continuous discharge current ( upper limit ) : 40A
Overcurrent protection : 125A
Overcharge detection : 12.8V ( for 3 groups of batteries )
Overcharge release : 12.3V ( for 3 groups of batteriese Overdischarge detection : 2.4V ( for 1 group of batteries )
Overdischarge release : 3.0V ( for 1 group of batteries )
Short circuit protection : Yese
Working temperature : -40℃ ~ +85℃
Storage conditions : -40℃ ~ +125℃
Product description 40A
The 3 Series 40A 18650 Lithium Battery Protection Board 11.1V 12.6V with Balance for Drill Motor Lipo Cell Module comes with recovery function-AUTO Recovery and Integrated 10 low load resistance MOS tube. It provides a continuous discharge of 40A, 100mA balanced current, for electric drill/sprayer/LED lights/low power inverter. Featured by Sharvi Electronics (if the cooling environment is not good, please reduce the load current use).The Scope of Nominal voltage of 3.6V, 3.7V lithium battery (including 18650,26650, a polymer lithium battery) where Charging voltage can be range between 16.8V to 18.1V The board operates smoothly with Continuous charge current of (upper limit): 20A. The balanced version is suitable for starting current below 80A, power 135W below the drill (with balance).
