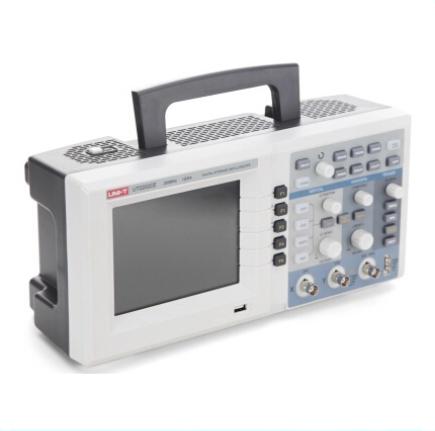

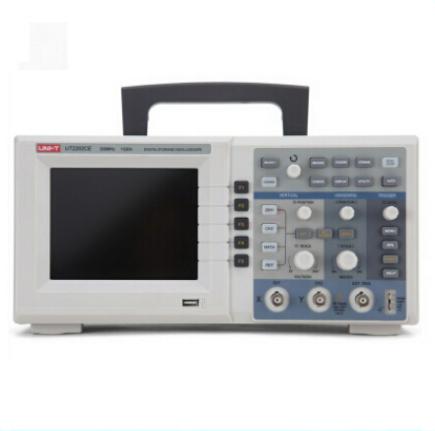

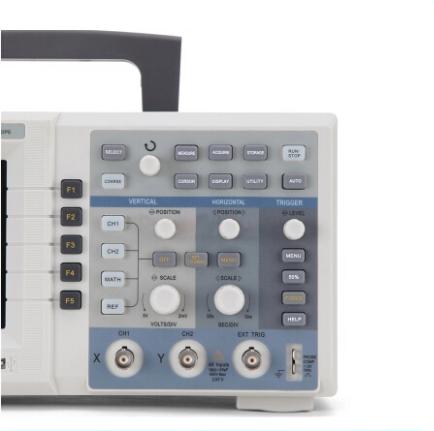

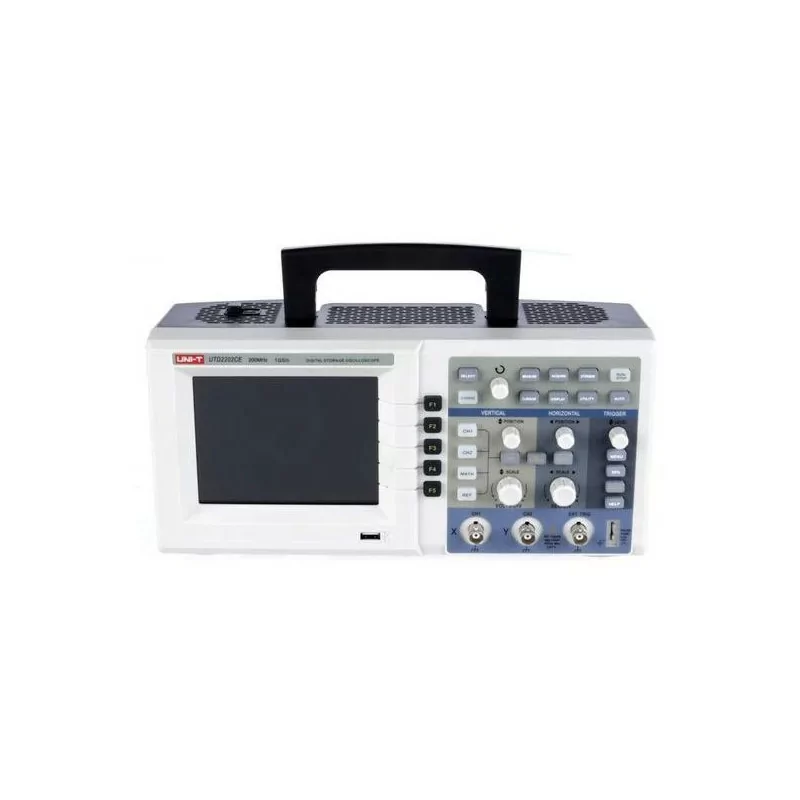

Oscilloscope Uni-T UTD2202CE
Mesures à deux canaux avec affichage simultané
Ecran LCD couleur 5,7 "
Fonctions de réglage multiples
Bande passante de 200 MHz
Taux d'échantillonnage de 1GS / s
Temps de montée de ≤1.8ns
Profondeur de mémoire de 25kpts
Taux d'acquisition de forme d'onde de ≥2000wfms / s
Sensibilité verticale de 2mV / div - 5V / div
Plusieurs modes de déclenchement: Edge, Pulse, Video, Alternate
Interfaces: périphérique USB, hôte USB et PASS / FAIL
Liste complète des produits
Oscilloscope numérique UNI-T UTD2202CE
2 x sondes
Cordon d'alimentation
Cable USB
CD du logiciel PC
: Vous pouvez voir les tarifs d'expédition et estimations de livraison cliquant ici
: Retour sous 7 jours avec conditions, cliquez pour plus de détails
1. Supports plug-and-play USB storage device. Communication with and remote control of computer through the USB device;
2. Storage of waveforms setups and interfaces waveforms and setups reproduction;
3. Automatic measurement of 28 waveform parameters;
4. Unique waveform recording and replay function;
5. Edge,Pluse,Video,Alternate trigger functions;
6. Unique Pass/Fail functions;
7. Multilingual menu displays.
Parameter:
| Specification | UTD2202CE |
| Channels | 2 |
| Bandwidth | 200MHz |
| Sample Rate | 1GS/s |
| Rise Time | 1.8ns |
| Memory Depth | 25kpts |
| Waveform Acquisition Rate | 2000wfms/s |
| Vertical Sensitivity | 2mV/div~5V/div |
| Timebase Range | 2ns/div~50s/div |
| Storage | Setup, Wave, Bitmap |
| Trigger Modes | Edge, Pluse, Video, Alternate |
| Interface | USB Device, USB Host, Pass/Fail |
| General Characteristic | |
| Power | 100-240VAC, 45-440Hz |
| Display | 5.7 Inches 64K Color TFT LCD, 320×240 |
| Product Color | White and Gray |
| Product Net Weight | 2.5 Kg |
| Product Size(W×H×D) | 320mm ×150mm ×130mm |
| Standard Accessories | Probe×2 (1×,10× switchable),Power Cord, USB Cable, PC Software CD |
| Standard Individual Packing | Gift Box, English Manual |
| Standard Quantity Per Carton | 2 PCs |
| Standard Carton Measurement(L×W×H) | 450mm × 420mm × 280mm |
| Standard Carton Cross Weight | 9.2 Kg |
| Optional Accessories* | |
| LAN Communication Port, | |
Contrast:
| Specification | UTD2102CE | UTD2152CE | UTD2202CE |
| Channels | 2 | ||
| Bandwidth | 100MHz | 150MHz | 200MHz |
| Sample Rate | 1GS/s | ||
| Rise Time | 3.5ns | 2.3ns | 1.8ns |
| Memory Depth | 25kpts | ||
| Waveform Acquisition Rate | 2000wfms/s | ||
| Vertical Sensitivity | 2mV/div~5V/div | ||
| Timebase Range | 5ns/div~50s/div | 2ns/div~50s/div | |
| Storage | Setup, Wave, Bitmap | ||
| Trigger Modes | Edge, Pluse, Video, Alternate | ||
| Interface | USB Device, USB Host, Pass/Fail | ||
| General Characteristic | |||
| Power | 100-240VAC, 45-440Hz | ||
| Display | 5.7 Inches 64K Color TFT LCD, 320×240 | ||
| Product Color | White and Gray | ||
| Product Net Weight | 2.5 Kg | ||
| Product Size(W×H×D) | 320mm ×150mm ×130mm | ||
| Standard Accessories | Probe×2 (1×,10× switchable),Power Cord, USB Cable, PC Software CD | ||
| Standard Individual Packing | Gift Box, English Manual | ||
| Standard Quantity Per Carton | 2 PCs | ||
| Standard Carton Measurement(L×W×H) | 450mm × 420mm × 280mm | ||
| Standard Carton Cross Weight | 9.2 Kg | ||
| Optional Accessories* | |||
| LAN Communication Port, | |||
